RFM63W-868S2 数据手册 - HopeRF

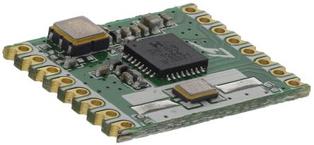

RFM63 868MHz ISM Transceiver, HopeRFThe RFM63W is a low-cost 868MHz ISM-band transceiver module. The RFM63W is optimized for very low power consumption. All major RF communication parameters are programmable and most of them may be dynamically set. In order to better use RFM63W modules, this specification also involves a large number of the parameters and functions of its RF63 core chip, including those IC pins which are not leaded out. All of these can help customers gain a better understanding of the performance of RFM63W modules.Carrier Frequency range: 865 to 871MHz RF Output Power: 12dBm Modulation: FSK or OOK Receiver Sensitivity: -105dBm at 25kbps in FSK, -111dBm at 2kbps in OOK Rx power consumption: 3mA Tx power consumption: 25mA @ +10dBm Programmable RF output power: up to +12dBm in 8 steps Packet handling feature with data whitening and automatic CRC generation Wide RSSI (Received Signal Strength Indicator) dynamic range, 70dB from Rx noise floor Data rate: Up to 200kbps with NRZ coding On-chip frequency synthesizer Incoming sync word recognition Built-in Bit-Synchronizer for incoming data and clock synchronization and recovery Power supply: +2.1 to +3.6Vdc Operating temperature range: -20 to +70°C Dimensions: 19.7 x 16 x 1.9mm Optimized Circuit Configuration for low-cost application Applications: Wireless alarm & security systems, Wireless sensor networks, Automated Meter Reading, Home & Building automation, Industrial monitoring & control, Remote Wireless Control , Local communication for the Internet-of-Things (IoT)### 无线模块 - HopeRF
