T3438501 数据手册 - Amphenol（安费诺）

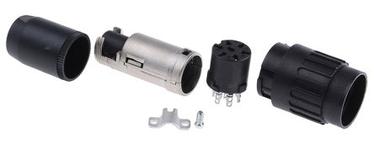

直向电缆插座仅与电缆插头配用 长度 68mm，直径 20mm Rated Voltage | 250V (60V 12 way) ---|--- Wire Gauge Max | 0.5mm² (0.25mm² 12 way) Current Rating | 5A at 40°C (3A 12 way) Contact Plating | Silver Contact Resistance | Insulation Resistance | >1012Ω Mating Cycles | >500 Temperature Range | -40 to +85°C Dimensions (mm) : | Length: 68 Dia: 20 ### 注两种配置均提供 5 路。### 认可UL 认证Technical specification --- Rated Voltage | 250V (60V 12 way) Wire Gauge Max | 0.5mm² (0.25mm² 12 way) Current Rating | 5A at 40°C (3A 12 way) Contact Plating | Silver Contact Resistance | Insulation Resistance | >1012Ω Mating Cycles | >500 Temperature Range | -40 to +85°C
